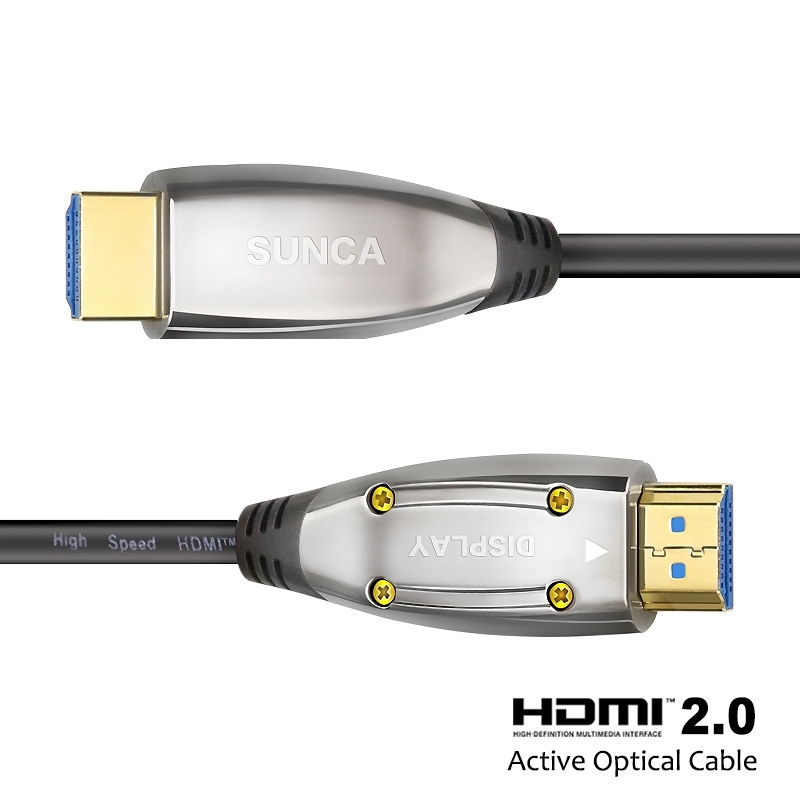

Premium High Speed HDMI® Cable 4K Active Optical Cable (AOC) M to M

Key Features:

Extend HDMI up to 300M over fiber optics
Plug and play, no external power supply or signal amplifier
Compliant to link with all HDMI A-type connectors
Low power consumption
Longer, thinner cable without EMI/RFI emissions
Proven 850nm VCSEL array technology
18Gbps bandwidth and 4K@60HZ with HDR
HDMI Type A to Type A
CE/FCC Compliant

Send Inquiry

We provide OEM and ODM services
Contact Us ☎ ＋886-2-8228-1638

Detail

Products：

HDMI AOC Series

An HDMI active optical cable (AOC) is used to extend the transmission distance between data sources and display devices. The transmission distance can be up to 300M through a hybrid cable consisting of optical fibers and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibers, while the low-frequency control signals are transmitted through the copper wire. With an advanced optical engine embedded, it is feasible to connect any HDMI devices, such as Blu-ray, projectors, gaming consoles, computers, and so on, to deliver a high-quality display. We can produce any optical fiber cable in any quantity on time for our clients.

It is UL and RoHS compliant and HDMI Certified with Confirmation of HDMI ATC Testing.

When it is about cables, it has to be SUNCA.

General specifications:

Plug and play, no external power supply or signal amplifier
Support 18 Gbps bandwidth (single channel 6 Gbps)
Support 4:4:4 4K@60Hz 3D
Support HDCP/EDID/CEC/DDC
Supply voltage: 5.0V
Power Consumption: ≤250mmW
Hybrid type with 50/125um fiber and copper wire OD: 4.0-5.2mm
Cable length: 10m/15m/20m/25m/30m/50m/60m/80m/100m/150m/200m/300m/other length customization

Product application:

Digital Signage
LED signboards in streets and in stadiums
Medical Imaging Equipment
Airplane On-board Video System
Home Theater, Projector
Blu-ray, 3D video, Set-up box, DVR, Game Consoles, and Computer
TV Broadcast Station
Conference Room Video Equipment
Security systems
Engineering wiring systems

Cable mechanical and environmental performance:

Tensile Resistance: Long term 200N, Short term 300N
Pressure Resistance: Long term 2000N/10cm, Short term 3000N/10cm
Cable Bending Radius ≥ 10mm X 1 turn
Operating Temperature -20~ 70°c

Packaging & Delivery

◀Packaging Details

Length: 5-30Meters

Carton size: 210x210x50mm

Length: 31-60Meters

Carton size: 240x240x100mm(Portable)

Length: 61-100Meters

Carton size: 260x280x100mm(Portable)

Length: 150Meters+

Carton size: Custom
