Product:

HDMI AOC Series

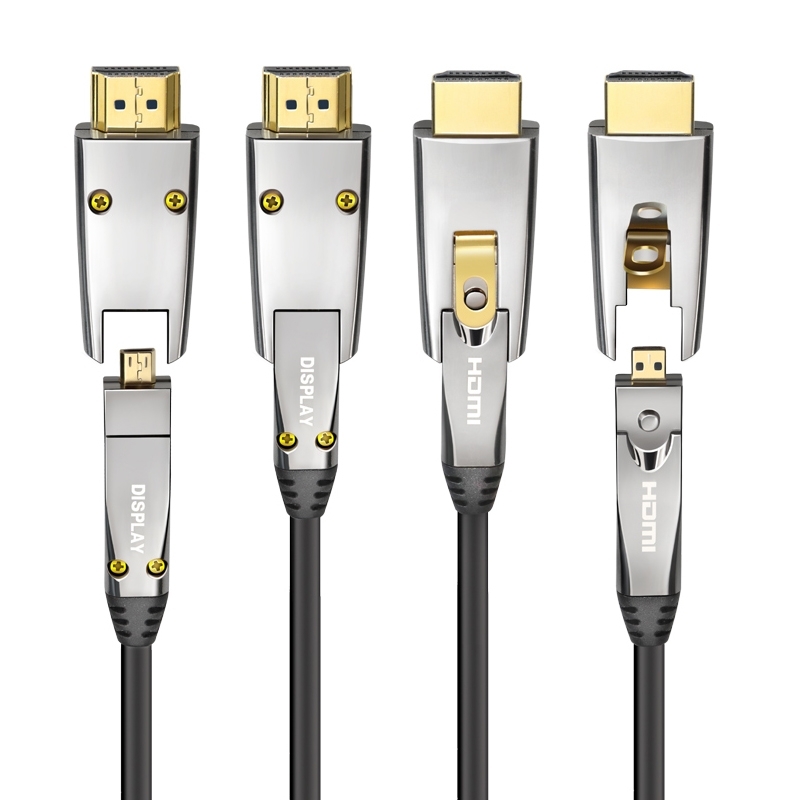

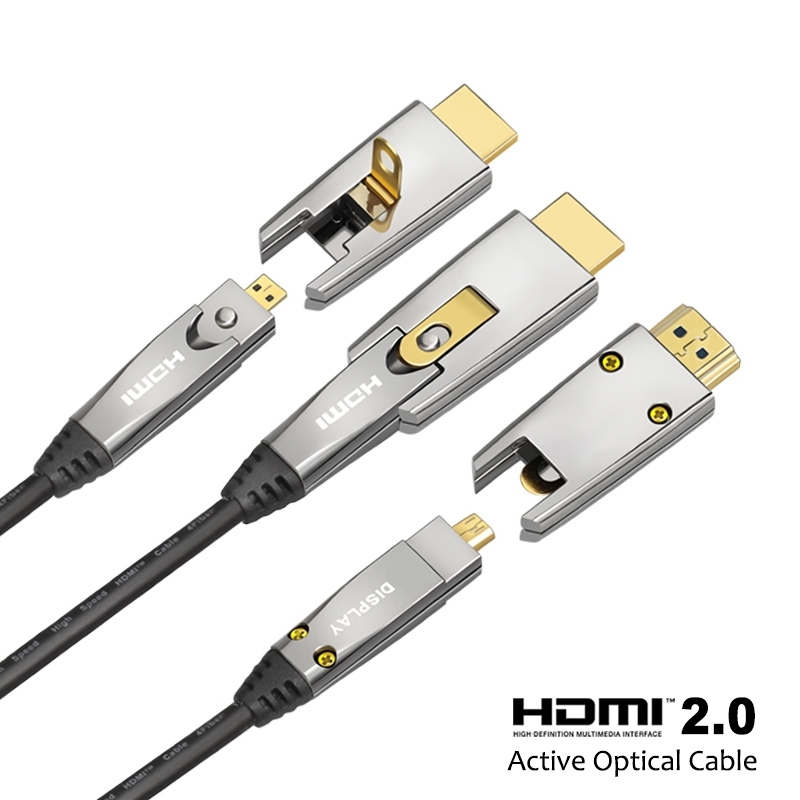

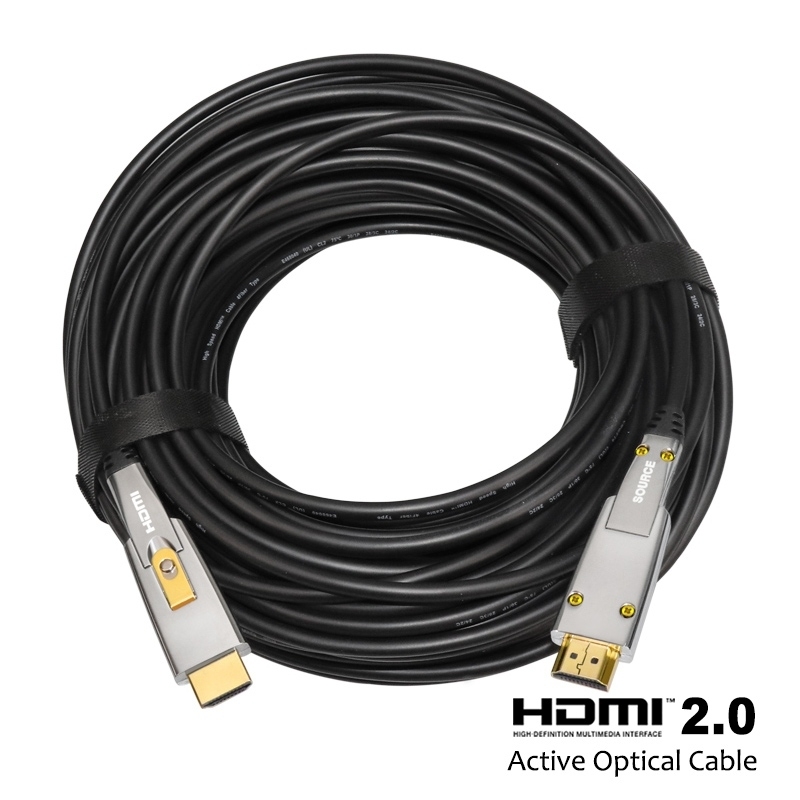

HDMI active optical cable(AOC) is used to extend the transmission distance between data source and display devices. The transmission distance can be up to 300M (maximum up to 200m for version 2.1) through a hybrid cable consisting of optical fibers and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibers,while the low frequency control signals are transmitted through the copper wire. With an advanced optical engine embedded,it is feasible to connect any HDMI devices such as Blu-ray, projectors, gaming consoles, computers and so on to deliver a high quality display. Our Cable assemblies lines are capable of producing any optical fiber cable in numbers and on time for our clients.

It is UL and RoHS compliant and HDMI Certified with Confirmation of HDMI ATC Testing.

When it is about cables, it has to be SUNCA.

General specifications:

• 1. Support version：HDMI 1.4 and 2.0
• 2. Plug and play, no external power supply or signal amplifier
• 3. Support 18 Gbps bandwidth (single channel 6 Gbps)
• 4. Support 4:4:4 4K@60Hz 3D
• 5. Support HDCP/EDID/CEC/DDC
• 6. Supply voltage: 5.0V
• 7. Power Consumption: ≤250mmW
• 8. Cable: Hybrid type with 50/125um fiber and copper wire OD:4.0-5.2mm
• 9. Cable length: 10m/15m/20m/25m/30m/50m/60m/80m/100m/Customize

Product application:

• 1. Digital Signage
• 2. LED signboards in streets and in stadiums
• 3. Medical Imaging Equipment
• 4. Airplane On-board Video System
• 5. Home Theater,Projector
• 6. Blue-ray, 3D video, Set-up box, DVR, Game Consoles and Computer
• 7. TV Broadcast Station
• 8. Conference Room Video Equipment
• 9. Security systems
• 10. Engineering wiring systems

Cable mechanical and environmental performance:

• 1. Tensile Resistance: Long term 200N, Short term 300N
• 2. Pressure Resistance: Long term 2000N/10cm, Short term 3000N/10cm
• 3. Cable Bending Radius ≥ 10mm X 1 turn
• 4. Operating Temperature -20~ 70°c

◀Packaging Details

Length: 5-30Meters

Carton size: 210x210x50mm

Length: 31-60Meters

Carton size: 240x240x100mm(Portable)

Length: 61-100Meters

Carton size: 260x280x100mm(Portable)

Length: 150Meters+

Carton size: Custom
