HDMI AOC Series

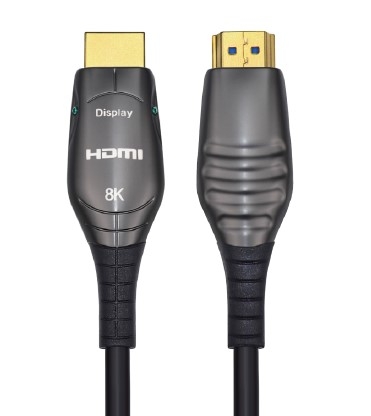

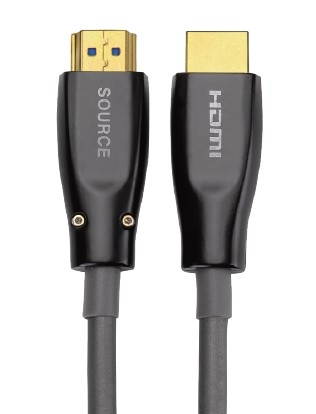

HDMI active optical cable(AOC) is used to extend the transmission distance between data source and display devices. The transmission distance can be up to 300M (maximum up to 200m for version 2.1) through a hybrid cable consisting of optical fibers and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibers,while the low frequency control signals are transmitted through the copper wire. With an advanced optical engine embedded,it is feasible to connect any HDMI devices such as Blu-ray, projectors, gaming consoles, computers and so on to deliver a high quality display. Our Cable assemblies lines are capable of producing any optical fiber cable in numbers and on time for our clients.

It is UL and RoHS compliant and HDMI Certified with Confirmation of HDMI ATC Testing.

When it is about cables, it has to be SUNCA.

General Specification:

• 1. Support Version: HDMI 1.4 and 2.0
• 2. Plug and Play, no need for external power supply or signal amplifier
• 3. Support 48Gbps Bandwidth
• 4. Support Resolution: 8K@60Hz，4K@120Hz
• 5. Cable Material: OM3 Fiber Core - 4 core + 7 core Copper Wire with Kevlar/Ballistic Nylon (Customizable)
• 6. Cable Diameter: OD 4.2mm or 4.8mm (Customizable)
• 7. Cable Jacket: Flame Retardant PVC (Cl2 / Cl3 / Other CMP Level) or TPE Jacket (Customizable)
• 8. Support: HDR，eARC and QFT、HD Dolby 7.1 and Dolby Atmos, etc
• 9. Power Consumption: 110mW
• 10. Cable Length：Maximum 200m, Customizable Length, e.g: 10m/30m/50m/100m, etc

Highlights:

• 1. Fiber Optic Transmission, Free of Electromagnetic interference
• 2. Slim Cabling, Suitable for multi-place Wiring
• 3. Light Signal, Zero Radiation
• 4. Optical Fiber Material, Zero Delay within hundreds meters transmission

Product Application & Domain:

• 1. Blu-ray Player
• 2. PC, Laptop
• 3. TV, Monitor
• 4. Gaming Console, Projector
• 5. Security Camera
• 6. Home Theatre
• 7. Conference Room
• 8. Classroom
• 9. Outdoor Advertisement Signs

Packaging & Delivery

◀Packaging Details

Length: 5-30Meters

Carton size: 210x210x50mm

Length: 31-60Meters

Carton size: 240x240x100mm(Portable)

Length: 61-100Meters

Carton size: 260x280x100mm(Portable)

Length: 150Meters+

Carton size: Custom
